Dual lock chuck
DL200 series

Kitagawa’s unique 2-step gripping of parallel gripping and pull-lock gripping afterwards

DL200 series

Dust proof sealed body suitable for volume production and automation.
Easy jaw forming

*CE correspondence

Download Catalogue pages (PDF)

Download instruction manual (PDF)

Product Specifications

Model			DL206	DL208	DL210	DL212
Jaw Stroke (Diameter) (mm)			5.8	7.2	9.0	9.0
Plunger Stroke (mm)			11.5	11.5	14.0	14.0
Gripping Range (mm)		Max.	140	210	234	304
Gripping Range (mm)		Min.	25	30	40	90
Max. Input (kN)		External Gripping	19	35	50	50
Max. Input (kN)		Internal Gripping	12.6	23.0	33.0	33.0
Max. Static Gripping Force (kN)		External Gripping	54	84	110	110
Max. Static Gripping Force (kN)		Internal Gripping	36.0	56.0	73.3	73.3
Max. Speed (min^-1)			6000	5000	4000	3000
Net Weight (kg) (with Soft Top Jaws)			18	30	52	74
Moment of Inertia (kg･m²)			0.080	0.135	0.410	0.880
Matching Cylinder			Y1020R	Y1225R	Y1530R	Y1530R
Outline Drawing	2D	PDF
		DXF
		DWG
	3D	External Gripping



		Internal Gripping

Note) The blue 3D data represents the jaw positions at the fully open (UC) and fully closed (OC) ends for both Parasolid and STEP.

The pink 3D data represents the jaw positions at the centre of stroke (HCL), the appropriate open end (HUL) and the appropriate closed end (HOL) for both Parasolid and STEP.

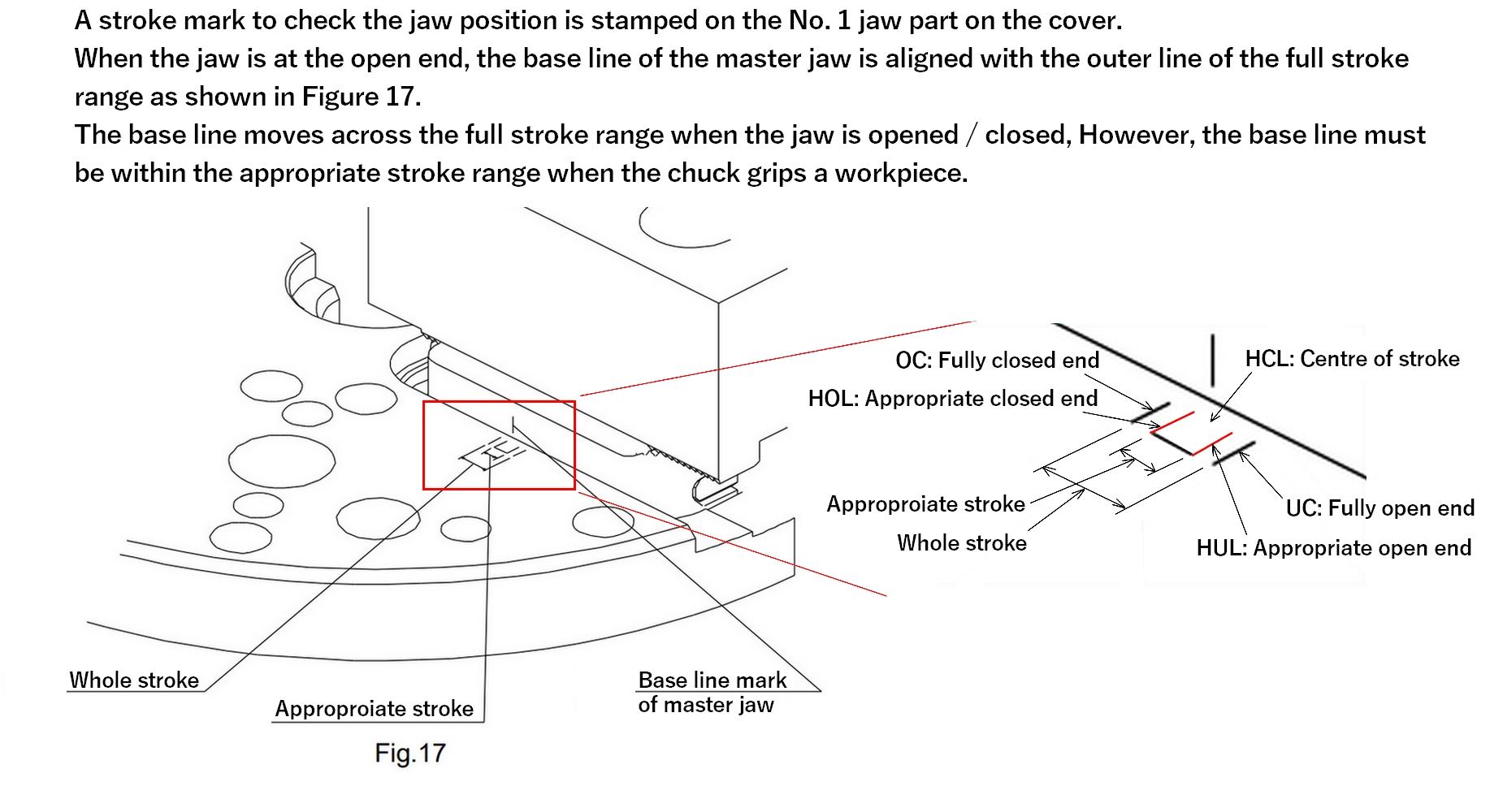

Jaw stroke
