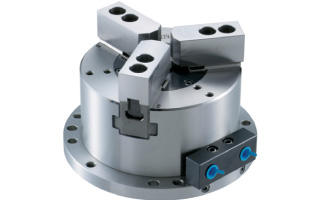

Through-hole pull lock chuck

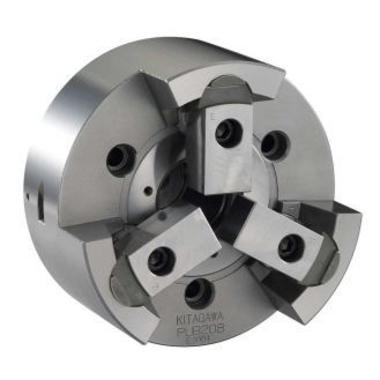

PUB series

Large through hole suitable for shaft machining

PUB seriesズーム

PUB series

  • Draw down for high-precision processing
  • Open centre type accommodates shaft processing

*CE correspondence

Download instruction manual (PDF)

Product Specifications

Model PUB205 PUB206 PUB208 PUB210 PUB212
Through-hole (mm) 31 39 50 72 100
Jaw Stroke (Diameter) (mm) 3 5 5 5 5
Plunger Stroke (mm) 6 10 10 10 10
Gripping Range (mm) Max. 64 69 89 112 162
Min. 29 35 35 47 99
Max. Draw Bar Pull Force (kN) 14 18 25 35 35
Max. Static Gripping Force (kN) 40 58 80 100 100
Max. Speed (min-1) 8000 7000 6000 4500 3600
Moment of Inertia (kg･m2) 0.016 0.053 0.14 0.355 0.675
Net Weight (kg) (with Soft Top Jaws) 6.5 14.4 25.3 43.5 60.5
Matching Cylinder F0933H Y1020R Y1225R Y1225R Y1225R
Outline Drawing 2D PDF
DXF
DWG
3D Parasolid
STEP

Note) Each 3D data includes three types of the positions of the jaws for both Parasolid and STEP: open end (UC), closed end (OC) and clamping position (CL).
