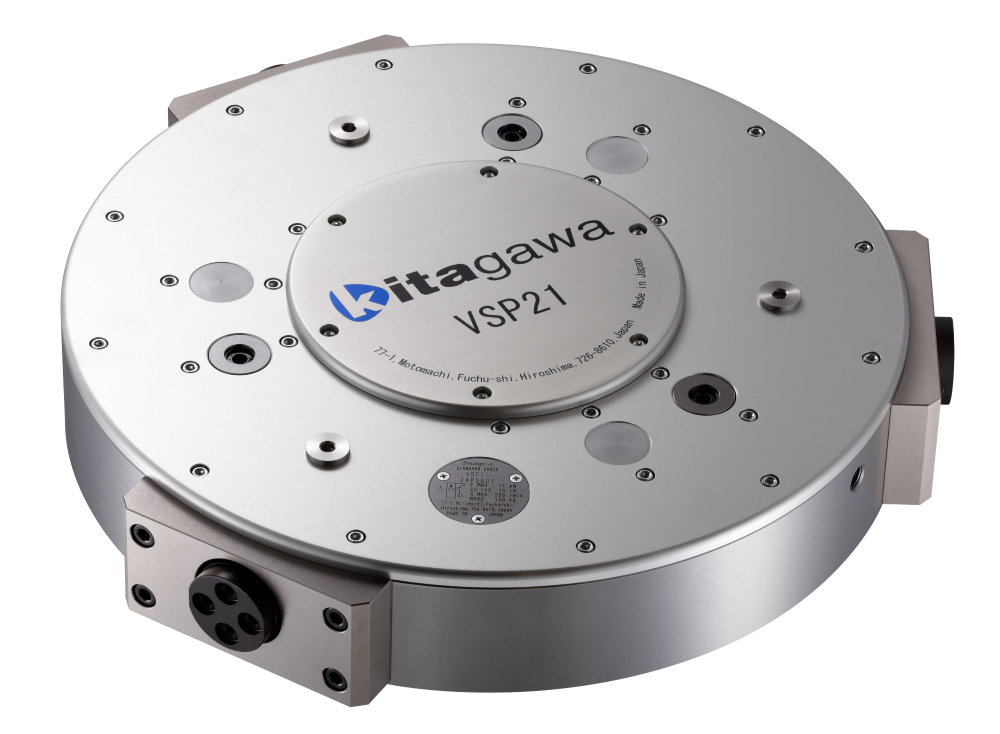

Vertical-type low gripping force chuck
VSP series

A dust- and waterproof chuck that can grip easily deformable workpieces with low gripping force.

VSP seriesズーム

VSP series

  • Ideal for grinding and polishing thin, disk-shaped parts
  • Gently grips workpieces without causing damage
    Static gripping force: 5-18kN (VSP21)
  • It features a construction equivalent to IP55, making it suitable for use in environments exposed to metal chips, dust, and cutting fluids.
    It can also be used for dry machining.
  • The low-friction design ensures long-term stability of low gripping force, minimizing maintenance needs.
Down load Catalogue pages (PDF)

Product Specifications

Model VSP21
Chuck outer diameter (mm) 530
Jaw stroke (in diameter) (mm) 20
Plunger stroke (mm) 18
Max. draw bar pull force (kN) 11
Max. gripping force (kN) 18
Max. speed (min-1) 200
Net weight (kg) 150
Moment of inertia (kg・m2) 6.0
Matching cylinder Y0720RE
Max. pressure (MPa) 3.2
Outline drawing 2D PDF
TIFF
DXF
DWG
