Hydraulic cylinder with through-hole and long stroke
S-L series

KITAGAWA standard through-hole cylinder

S-L series

Long piston stroke
Large through-hole, compact and light weight
Built-in check valve and relief valve

*CE correspondence

(Only models with stroke confirmation device)

Download Catalogue pages (PDF)

Download instruction manual (PDF)

Product Specifications

Model		S1246L	S1552L	S1875L	S2091L
Though Hole Diameter (mm)		46	52	75	91
Piston Stroke (mm)		32	34	40	50
Piston Area (cm²)	Push Side	100	161	198	252
Piston Area (cm²)	Pull Side	89	150	183	234
Draw Bar Thrust (kN)	Push Side	38	60	74	94
Draw Bar Thrust (kN)	Pull Side	33	56	69	88
Max. Operation Pressure (MPa)		4	4	4	4
Max. Speed (min^-1)		7000	6200	4700	3800
Moment of Inertia (kg･m²)		0.022	0.058	0.1	0.16
Total Leakage (L/min)		3.0	3.9	4.2	4.5
Net Weight (kg)		12.8	17.0	26.8	34.1
Outline Drawing	PDF
	DXF
	DWG

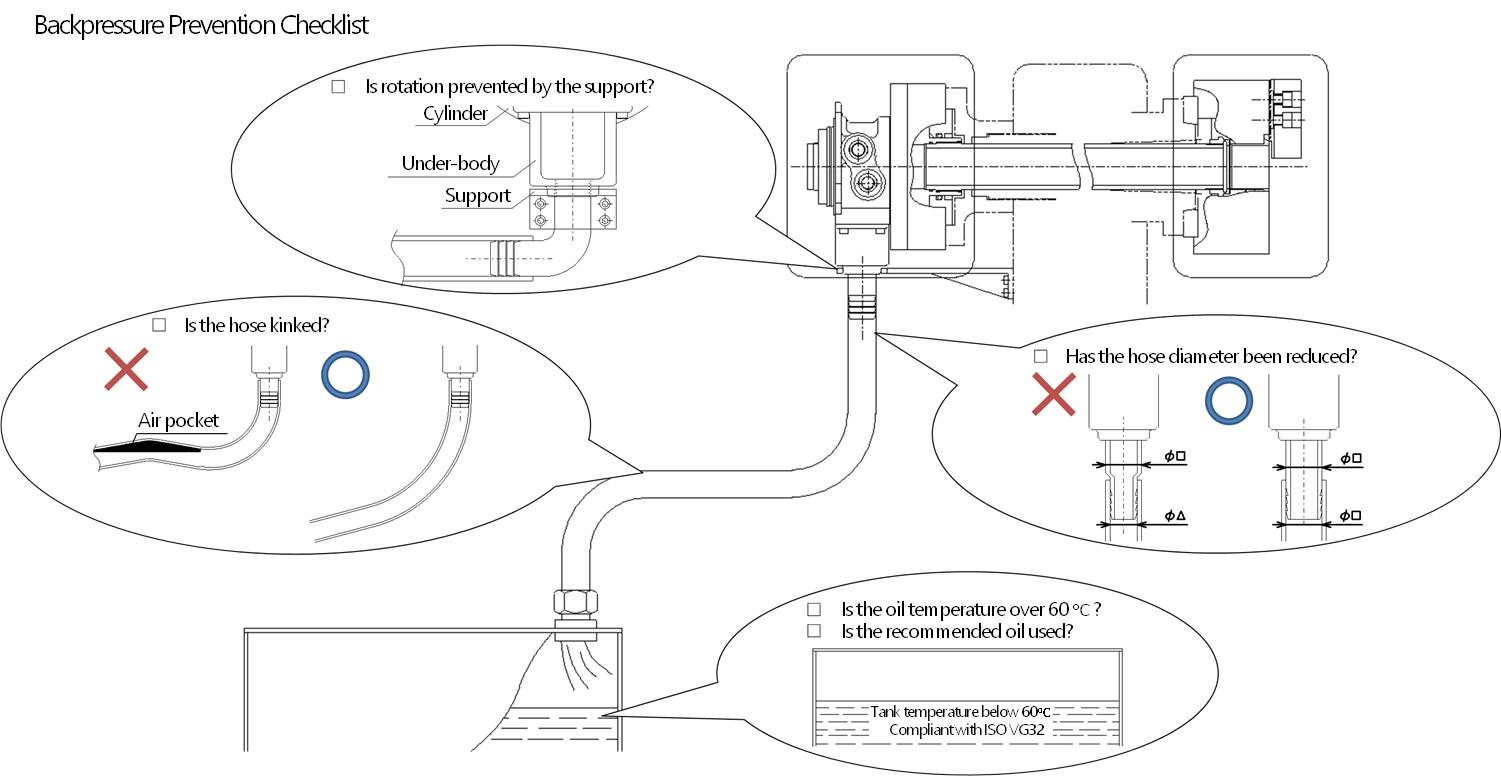

【Important】Please install the return piping so that backpressure does not occur, referring to the following checklist. Click on the image to enlarge it.
