Excellent dust resistance in machining
NC rotary table for Grinding centre

Effective for use in a dusty environment such as grinding, glass processing, and ceramic processing.

NC rotary table for Grinding centreズーム

NC rotary table for Grinding centre

  • Effective for use in a dusty environment such as grinding, glass processing, and ceramic processing
  • Shut out particles such as cutting powder and polishing powder from entering the main body by using special seals and air purges
  • Purge structure with low air consumption (0.3L/min)
  • Seal structure with low heat generation
  • Long-life seal
  • Structure that makes cleaning and replacement of seals easy
  • Thin body
  • Patent pending
Down load Catalogue pages (PDF)

Product Specifications

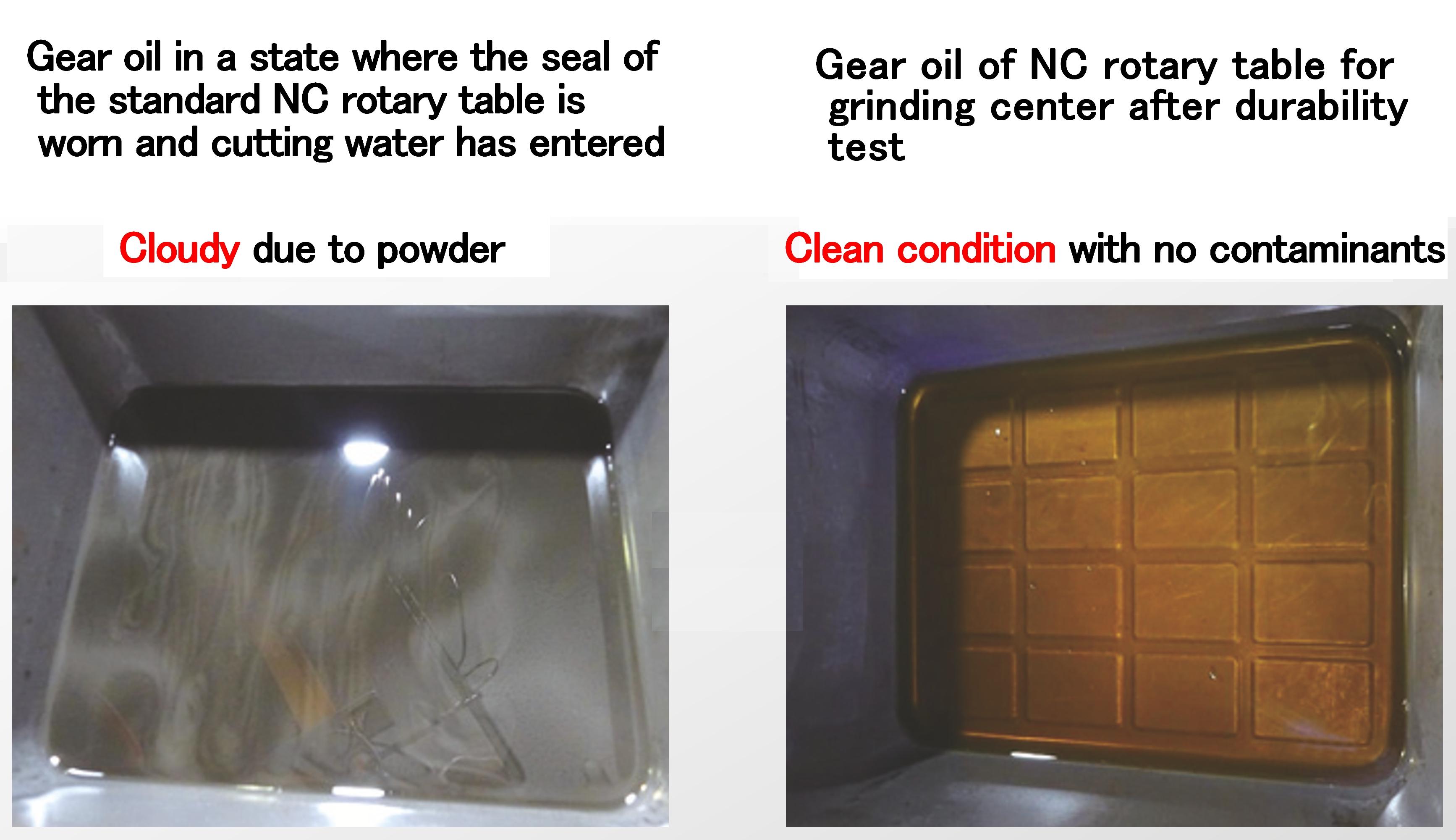

Passed the durability test of 1 million cycles* in a slurry mixed with silicon carbide and alumina

* One cycle consists of forward 180°, forward 180°, reverse 180°, and reverse 180°.



gearoil

Applicable NC rotary table



MK200RA**P
MK200LA**P
MK250RA**P
MK250LA**P		 RK201RA**P
RK201LA**P		 TR400H**P
TL400H**P
MK200 RK201 TR400
TT200H***P
TT200B***P
TT200HR**P
TT200BR**P		 RKT500*-*Q
RKT500*K*Q
TT200 RKT500



*The table face plate is not included as standard with the NC rotary table for grinding centres.

*Dimensions and specifications may differ from the base model. Please inquire when making inquiries.

*The rotary joint may differ from the standard, so please contact us.
