Controller for NC rotary tables
QUINTE series

QUINTE contlos Kitagawa NC rotary table with an M-signal of machining centre.

QUINTE series

Please scroll down the page for instruction manuals in languages other than English.
英語以外の取扱説明書はページを下にスクロールしてください。
请向下滚动页面查看非英文的使用说明书。
영어 이외의 사용 설명서는 아래로 스크롤해 주세요.

*CE correspondence

Download instruction manual (PDF)

Product Specifications

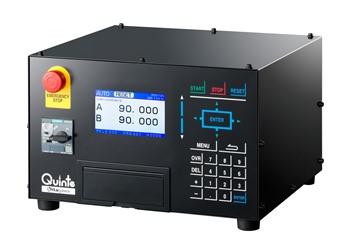

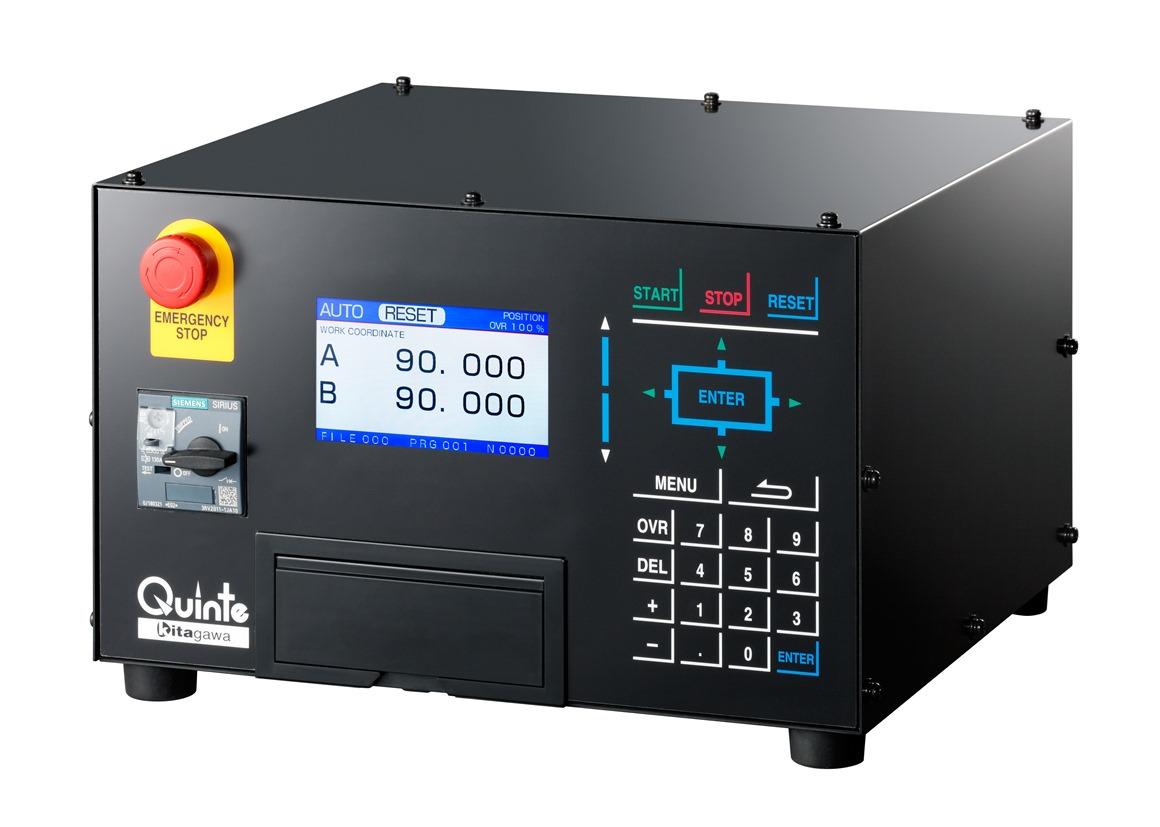

NC Rotary Table Controller
Quinte series　　QTC101CS・QTC201CS・QTC301

■

Color LCD enables to show various information

As well as current position, the high resolution color LCD can show the running program, motor information and more.

■

Easy to input a program

In editing program, interactive display screen prevents easy mistakes.

■

Reduce indexing time

Adopting EtherCAT enables high speed communication and shortens the time of indexing.

■

Easy to manage programs

Input/output programs and parameters can be managed by MMC (Multi Media Card) that is on the market.

■

Two types of panels with defferent operational feeling

Touch panel type follows up soft operation and quick operation.
Click emboss panel type (CS) offers a sense of security with a firm click feeling.

■

Select motors in accordance to a use or environment

There are many variations of motors, and a motor suitable for a particular machining condition can be selected.

【Selectable motor list】

Quinte		Single Axis	Double Axis	Powered
Model		QTC101CS	QTC201CS	QTC301
Matching motor	200W	〇	〇	－
	400W	〇	〇	－
	750W	〇	〇	－
	1000W	〇	〇	－
	1200W	〇	〇	－
	1800W	－	－	〇
	2000W	－	－	〇
	3500W	－	－	〇

■

To use extension I/O enables a variety of usage

To use extension I/O option enables to select programs and to output WZRN position and M signal from machines.

■

Manual pulse generator is available.

Manual pulse generator is available to all models as option.

■

Compatible with a remote control function

Remote control function by serial communication with machine is available as an option.
Operation confirmed CNC manufacturer and machine manufacturer.
FANUC CORPORATOIN, Mitsubishi Electric Corporation, Okuma Corporation, Yamazaki Mazak Corporation and BROTHER INDUSTRIES, Ltd.

■

Conforming to CE and KC standard

As well as EMC Directive, all models conform to KC mark.

■

Compatible with absolute encoder【Custom support】

Batteries are unnecessary with the adoption of a battery-less absolute encoder※. Coodinates never deviate even with reconnection after removal of cables for Quinte and the rotary table.

※Quinte battery is used for the system. However, since power consumption is very small, battery replacement is unnecessary.

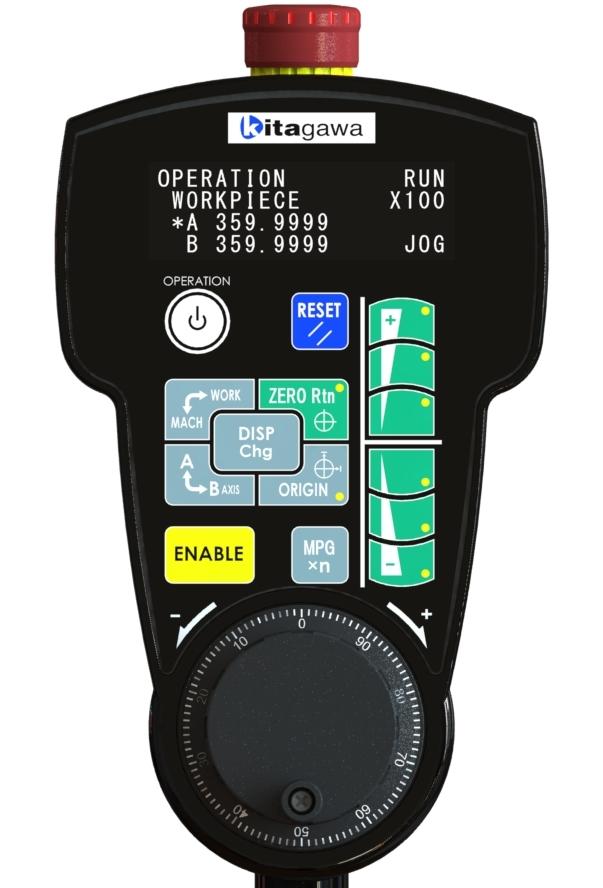

Manual Operation Pendant
for Quinte controllers

■	Easy holding style with one hand
■	It is able to be additionally installed to Quinte.
■	It enables to operate a rotary table with looking at movement nearby.
■	Functional color and key layout provide good visibility and operability.
■	Organic display ensures visibility even in dark machines.
■	Capacitance touch switch realizes smooth touch operation.

Quinte Gateway
for FANUC ROBODRILL series (option)

■	Operate Quinte from the ROBODRILL screen
	NC rotary table programme operation, jog operation, origin setting (setting the reference position), alarm reset, etc. can be performed without using the Quinte panel.
■	ROBODRILL and Quinte axis coordinates shown on a single screen
	The current position (coordinates) of the NC rotary table is displayed on the ROBODRILL coordinate screen. This supports setup and status checking.
■	Simplified wiring
	Only a single LAN cable is required to connect to the ROBODRILL. Noise resistance is also improved. (However, separate safety circuit wiring is required.)

Gateway Specifications
Item	Specification
Compatible machine	FANUC ROBODRILL α-DiB Plus series and DC series
Connection	LAN cable (Modbus / TCP)
Function	・Creating and transferring Quinte programmes on the ROBODRILL ・Displaying Quinte coordinates, status and alarms on the ROBODRILL ・Manually operating Quinte, switching modes, and resetting alarms on the ROBODRILL

System Configuration

No.	Item	Details	Provided by
①	NC rotary table	Compatible with all series	Kitagawa
②	Quinte	Version 01.12.00 or later	Kitagawa
③	Connection cable	Model: CGW-C-Q	Kitagawa
④	Gateway	Model: CGW-M	Kitagawa
⑤	LAN cable	Cat 5e or higher (STP)	Customer
⑥	Host (higher-level) device	FANUC ROBODRILL α-D_iB Plus	Customer
⑦	Custom screens (software)	Supplied via download from the Kitagawa website	Kitagawa
⑧	NC programme (software)	Supplied via download from the Kitagawa website	Kitagawa
