Robot hand

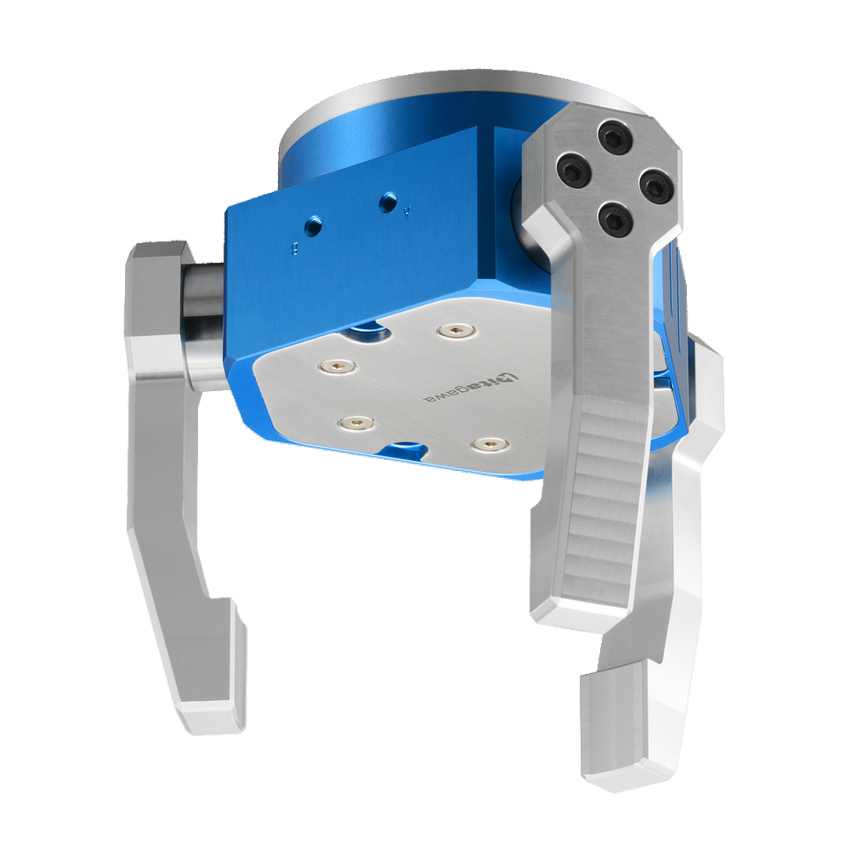

3-jaw parallel gripper NPG3 series

Sealed type ideal for machining environments such as cutting chips, dust, coolant fluid, etc.

NPG3 seriesズーム

NPG3 series

  • Ideal for machining environments with cutting chips, dust, coolant fluid, etc. (IP67)
  • Large ID gripping force
  • Unique sealing structure reduces the number of pipes

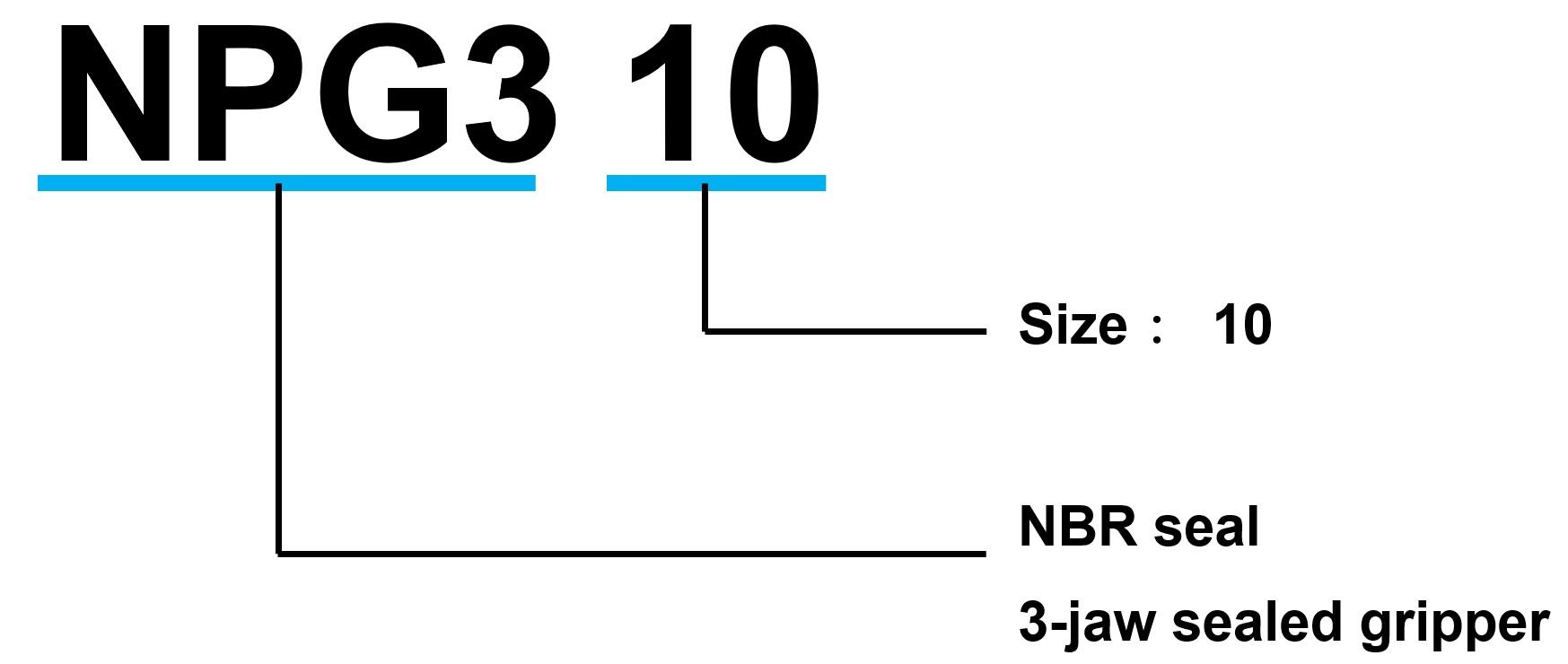

How to order

NPG3 series
  • Please install a check valve in the air-pressure circuit so that the gripper will not release a workpiece even if the air pressure drops down.

  • When the jaw stroke is detected by the reed switches, mount reed switched on the grooves on the outer periphery of the product. Up to 2 reed switches can be mounted.

Specifications

Model Jaw stroke
diameter
(mm)
Gripping force (Note 2) Repeatability
(mm)
Mass
(kg)
Air
consumption
per
reciprocating
(cm3)
Air pressure
(MPa)
Operating
temperature
(℃)
Protective class
Measurement
distance (Note 1)
L(mm)
OD gripping
(N)
ID gripping
(N)
NPG306 12 40 460 900 ±0.01 0.5 33.3 0.2~0.8 5~60 IP67
NPG308 16 40 1000 1900 ±0.01 1.3 68.4 0.2~0.8 5~60 IP67
NPG310 20 40 2000 3200 ±0.01 2.1 139.7 0.2~0.8 5~60 IP67
  • The measurement distance is the distance from the master jaw centre to the gripping centre.
  • Value at supply air pressure 0.6 MPa.

    Gripper allowable load

    For more information on the allowable load of each gripper, please see the following link.

    Option

    Gripping force

    Click the model number and the gripping force diagram will be displayed. The gripping force, F is a product of the actual gripping force per jaw, F1 and the number of jaws

    NPG306
    NPG308
    NPG310

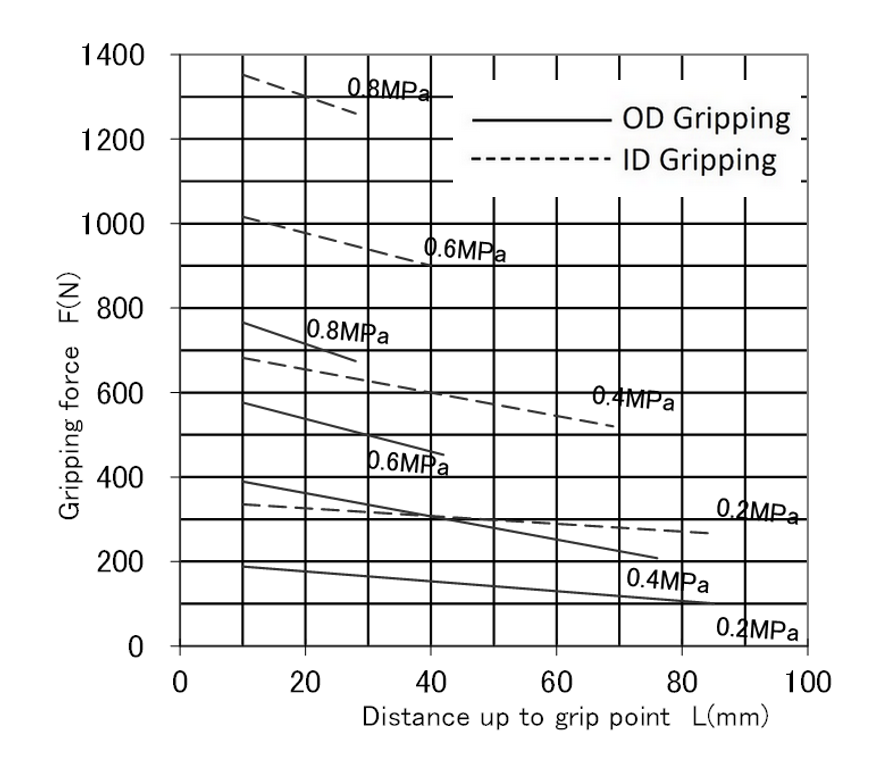

    • NPG306

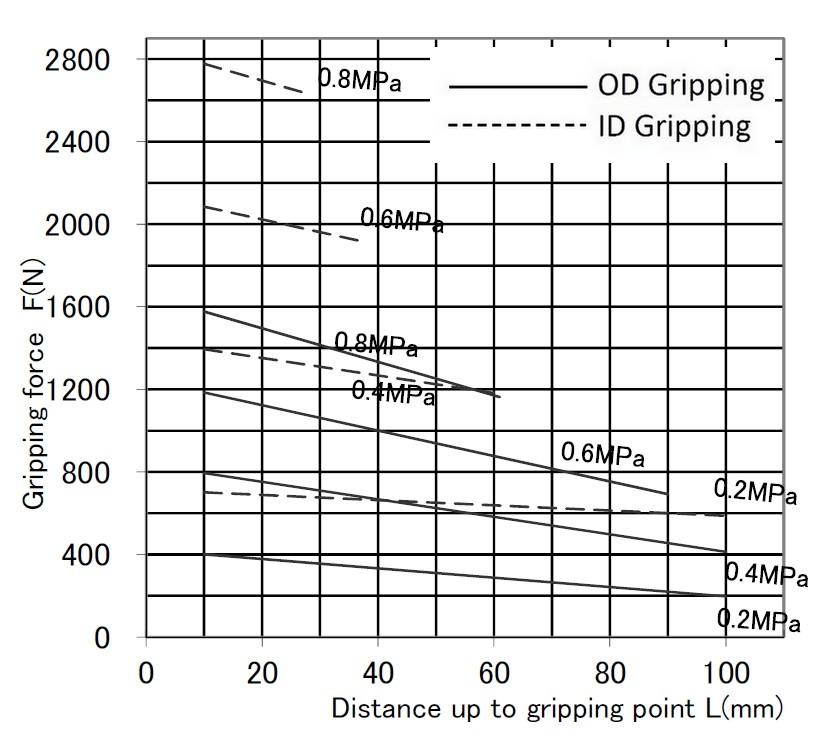

    • NPG308

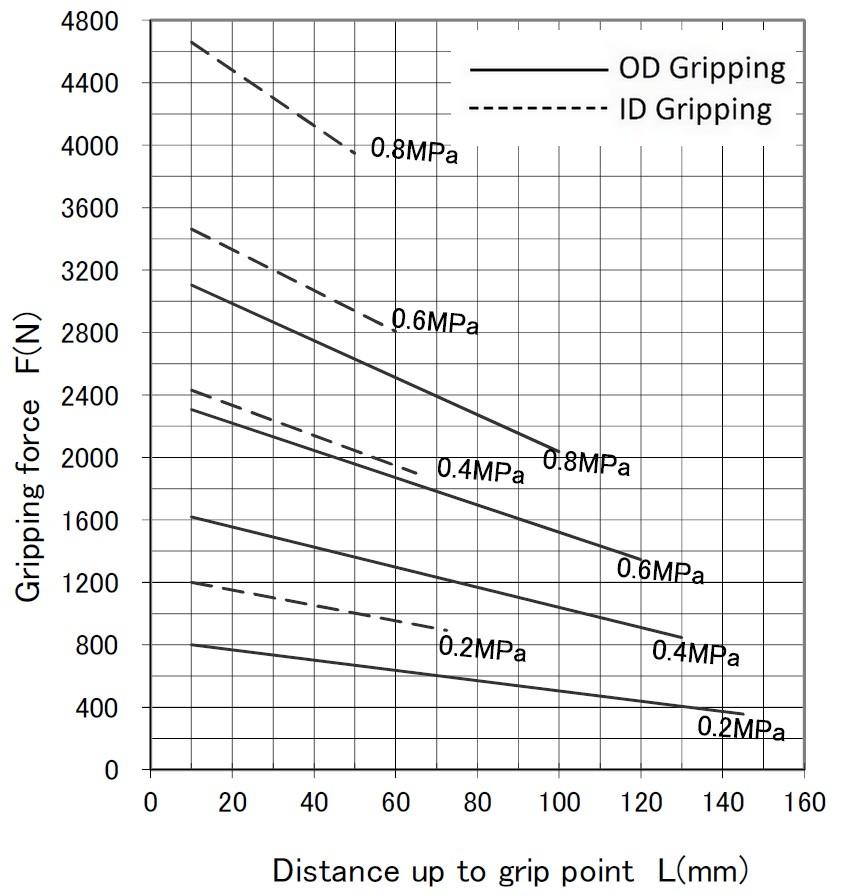

    • NPG310

    Drawing download

    Model Drawing download
    NPG306 PDF DXF 3D
    NPG308 PDF DXF 3D
    NPG310 PDF DXF 3D
