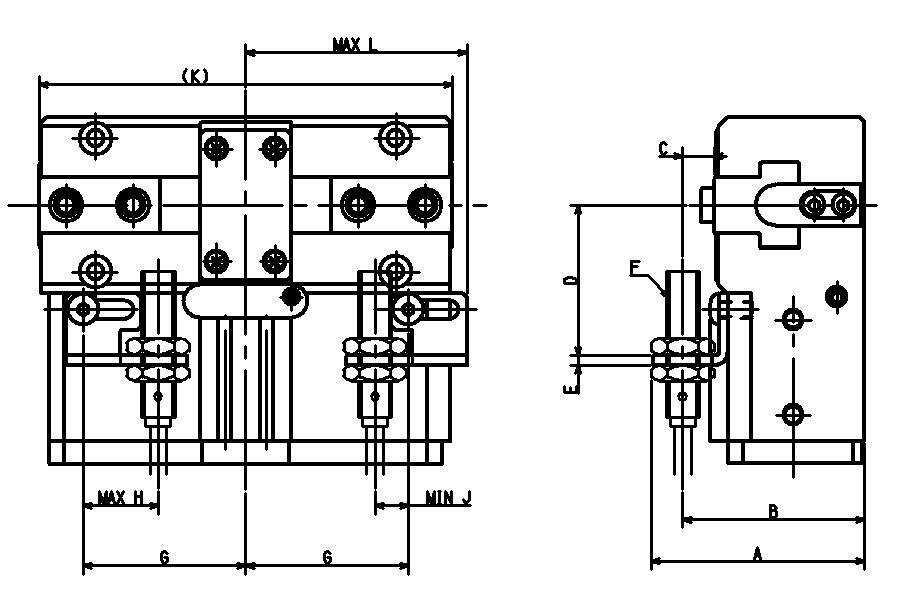

| Bracket Type | Gripper Type | Outline Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | L | ||
| NPGT08-B | NPGT08 | 51 | 43.5 | 7.5 | 36 | 2.3 | M8 | 39 | 18 | 8 | 99 | 53 |
| NPGT10-B | NPGT10 | 55.5 | 48.5 | 7.5 | 40 | 2.3 | M8 | 48 | 21 | 9 | 120 | 66 |
| NPGT12-B | NPGT12 | 70 | 63 | 10 | 44 | 2.3 | M8 | 60 | 29 | 11 | 150 | 84 |
| NPGT16-B | NPGT16 | 82 | 75 | 11 | 54 | 2.3 | M8 | 80 | 29 | 11 | 190 | 104 |
