Machine Tool

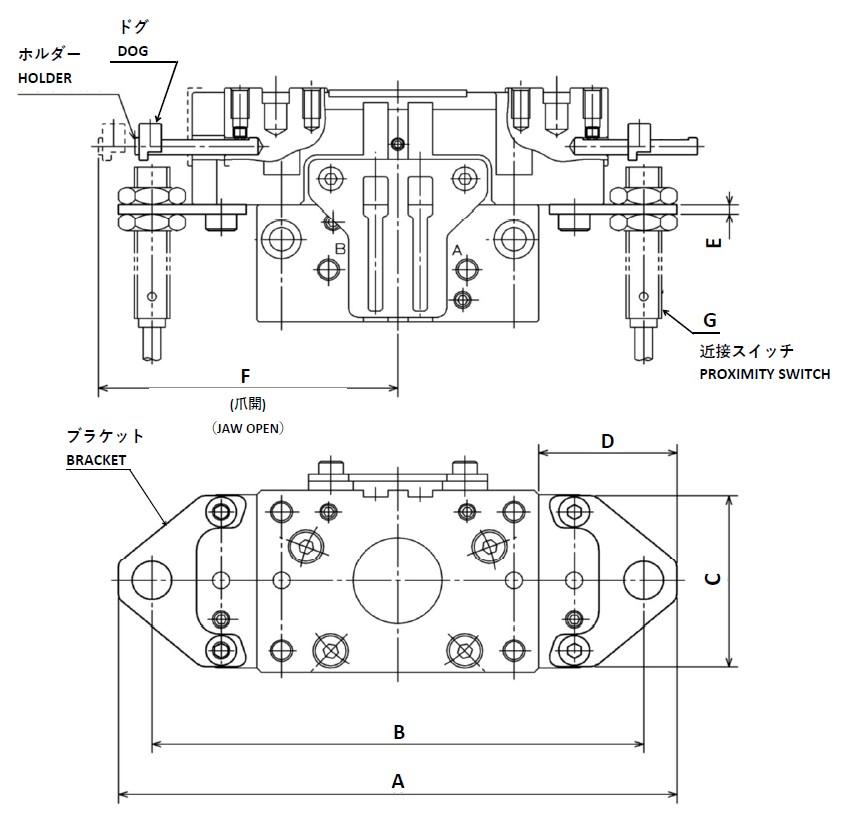

| Bracket Type | Gripper Type | Outline Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||
| NTS206-B | NTS206 | 108 | 21.5 | 7.5 | 34 | 2 | 57 | M8 |
| NTS208-B | NTS208 | 125 | 23 | 7.5 | 40 | 2 | 67 | M8 |
| NTS210-B | NTS210 | 146 | 22 | 7.5 | 47 | 2 | 80.5 | M8 |
| NTS212-B | NTS212 | 173 | 22 | 7.5 | 54 | 2 | 95.5 | M8 |
| NTS216-B | NTS216 | 218 | 22 | 7.5 | 64 | 2 | 122 | M8 |
| NTS220-B | NTS220 | 271 | 35.5 | 7.5 | 82 | 2 | 152 | M8 |
Wide variety of world’s standard power chuck
High gripping force & stability to suit various requirements
Necessary item for Quality control and Safety
Standard Manual Chucks suit to a high-mixture of work pieces and low-volume production.

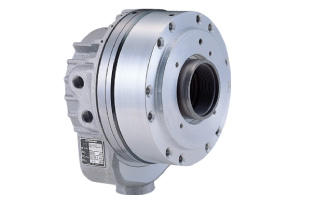

High performance Rotary Cylinder is integral to for the operation of a power chuck and extracts the maximum capability of the chuck.
