QGB(L) series

Robot hand

Easy changeover gripper - QGB(L) series

Quick plate exchange gripper

Quick jig exchange with easy operation just to loosen the lock nut
Lightweight and compact
Easy retrofit since it is manual exchange
No need for teaching or adjustment at jig exchange

/div>

Download catalogue (PDF)

How to order

Please install a check valve in the air-pressure circuit so that the gripper will not release a workpiece even if the air pressure drops down.
When the jaw stroke is detected by the reed switches, mount reed switched on the grooves on the outer periphery of the base unit. Up to 6 reed switches can be mounted. This model does not support stroke check with Proximity switches.

Specifications

Base Unit QGB series

Model	Piston Stroke (mm)	Piston Thrust^{^(Note1)}		Mass (kg)	Air Consumption per reciprocating (cm³)	Air Pressure (MPa)	Operating Temperature (℃)	Lock nut tightening torque (N･m)
Model	Piston Stroke (mm)	Pull (N)	Push (N)	Mass (kg)	Air Consumption per reciprocating (cm³)	Air Pressure (MPa)	Operating Temperature (℃)	Lock nut tightening torque (N･m)
QGB06	7.5	867	968	0.75	24.1	0.2 ～ 0.8	5 ～ 60	12
QGBL06	15	867	968	0.85	52.6			12
QGB08	10	1353	1506	1.15	50.2			20
QGB11	12.9	3010	3240	2.33	134.7			28

(Note1) Value at supply air pressure 0.6 MPa.

(Note2) QGBL06 is the long stroke model.

Jaw Plate QG series

Model	Matching Base Unit	Jaw Stroke Diameter (mm)	Gripping Force^{^(Note2)}			Repeatability (Reference Value) (mm)	Mass (kg)	Air Pressure (MPa)	Operating Temperature (℃)
Model	Matching Base Unit	Jaw Stroke Diameter (mm)	Measurement Distance^{^(Note1)} (mm)	OD Gripping (N)	ID Gripping (N)	Repeatability (Reference Value) (mm)	Mass (kg)	Air Pressure (MPa)	Operating Temperature (℃)
QG30608	QGB06	11.2	20	750	800	±0.03	0.33	0.2 ～ 0.8	5 ～ 60
QG20608	QGB06	11.2					0.30	0.2 ～ 0.6
QGL30610	QGBL06	24.0					0.64	0.2 ～ 0.8
QG30810	QGB08	15.6	20	1010	1120		0.55	0.2 ～ 0.8
QG30815							0.90	0.2 ～ 0.8
QG20810							0.40	0.2 ～ 0.6
QG31112	QGB11	20	20	2360	2620		1.31	0.2 ～ 0.8
QG21112	QGB11	20	20	2140	2700		1.20	0.2 ～ 0.8

(Note1) The measurement distance is the distance from the top surface of the master jaw to the gripping centre.

(Note2) Value at supply air pressure 0.6 MPa.

(Note3) QGL30610 is the long stroke model.

Instruction Manual

* Download the instruction manual for QG (standard stroke model) from here.

* Download the instruction manual for QGL (long stroke model) from here.

When attaching or detaching the face plate, follow the instructions below.

Removal Procedure for the Jaw Plate

Installation Procedure for the Jaw Plate

Allowable load for gripper

For more information on the allowable load of each gripper, please see the following link.

Allowable load for gripper

Option

Reed switch

Seal kit

Gripping force

Click the model number and the gripping force diagram will be displayed. The gripping force, F is a product of the actual gripping force per jaw, F1 and the number of jaws

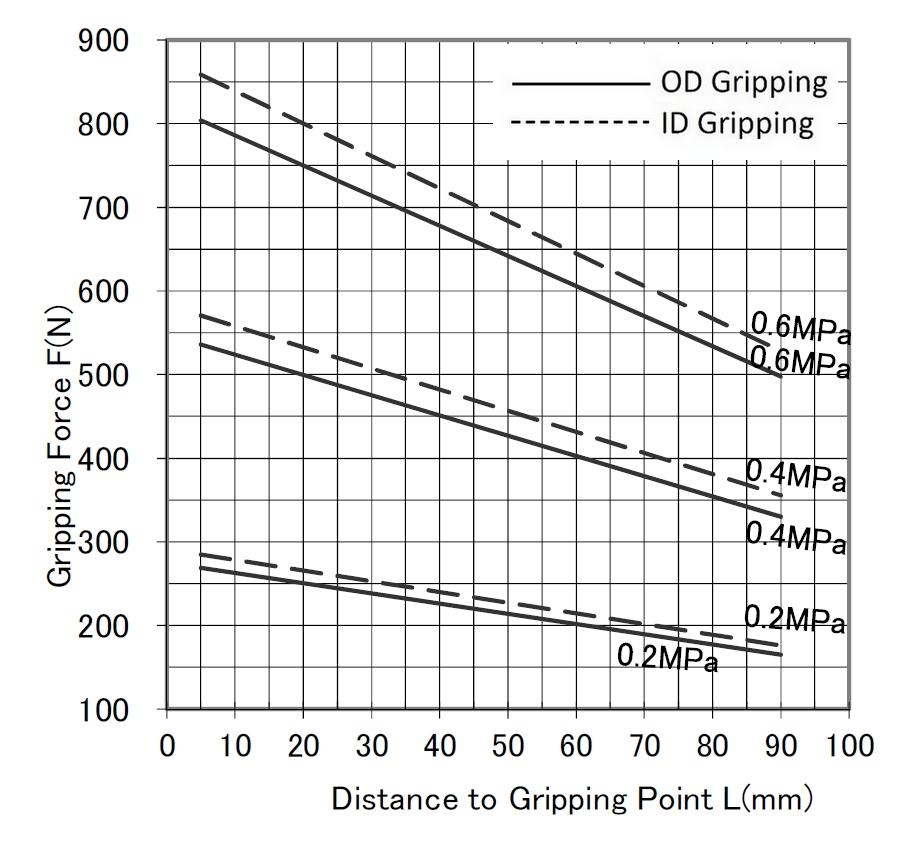

QG20608

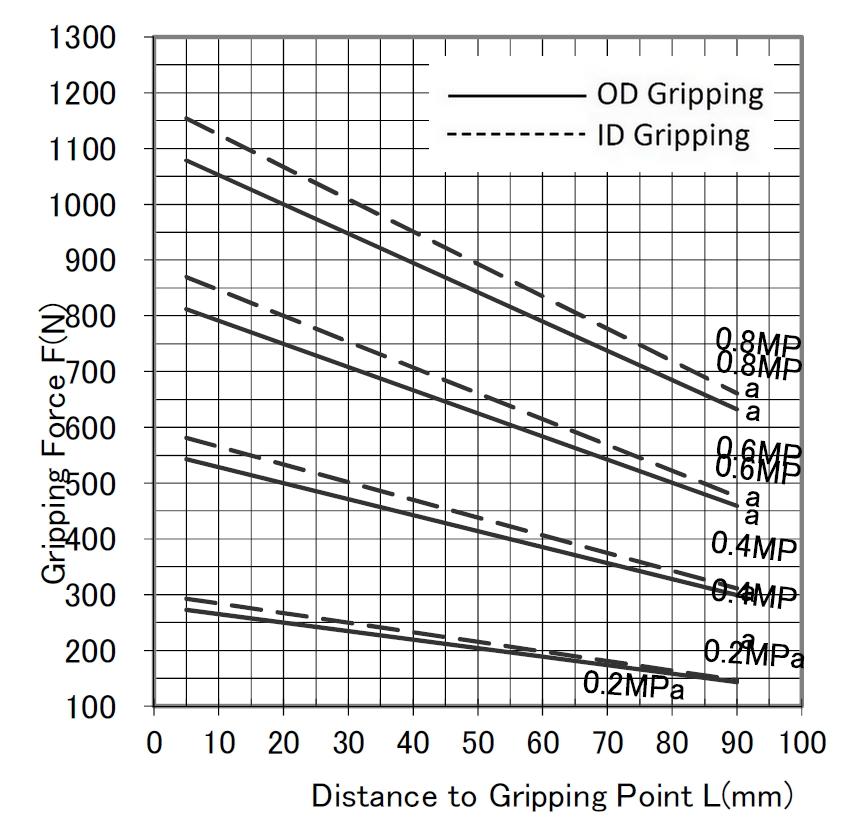

QG30608

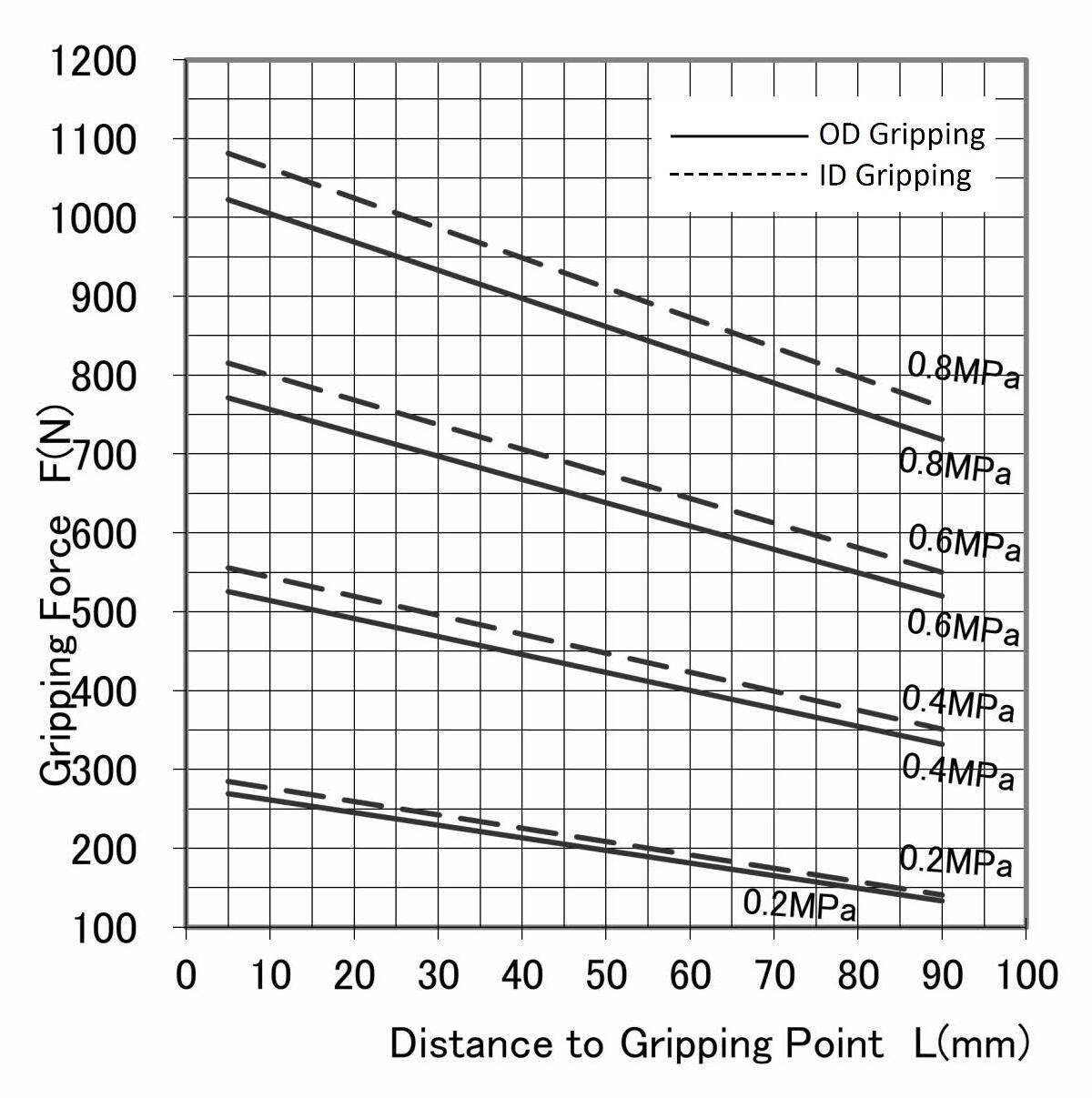

QGL30610

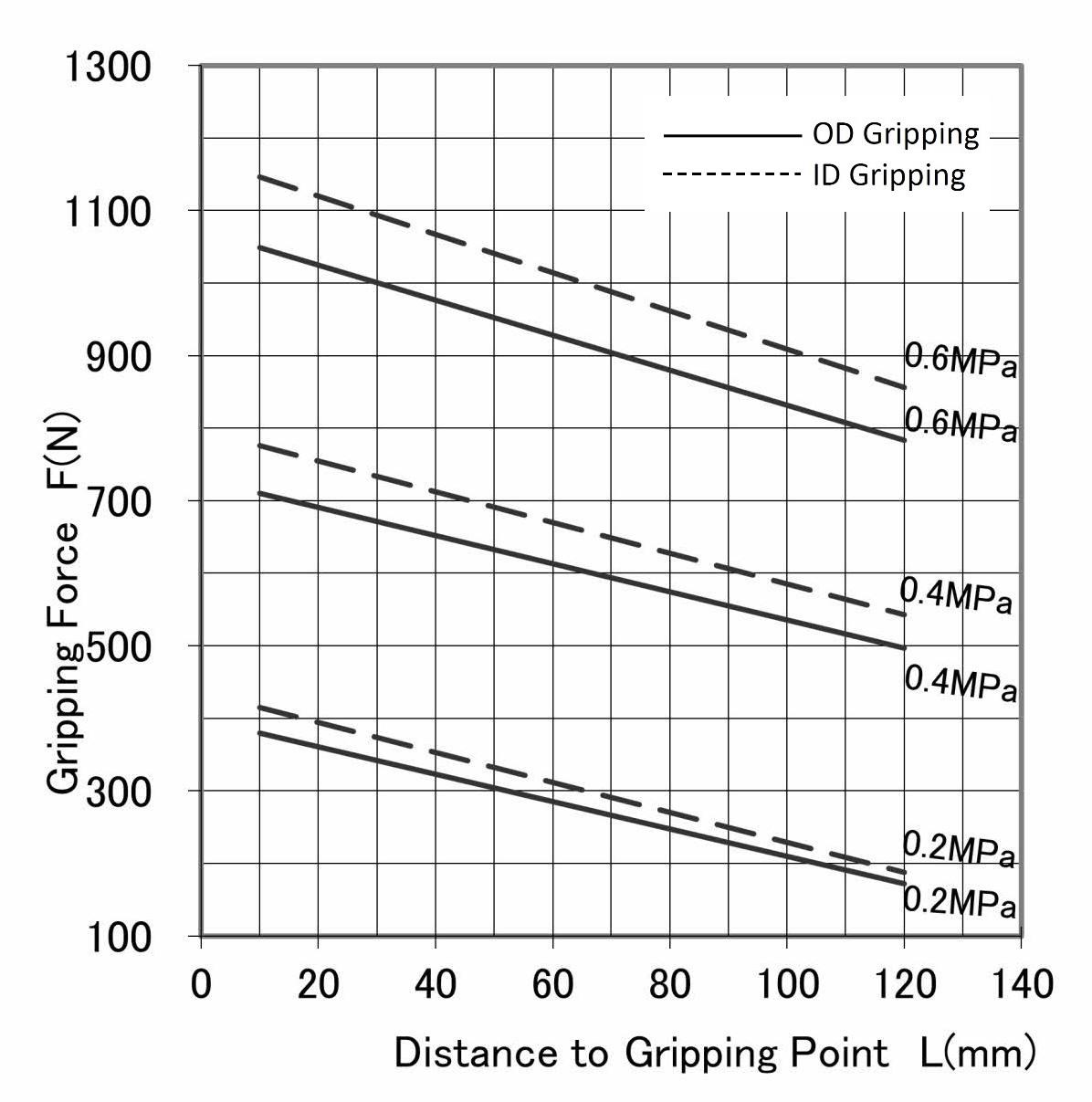

QG20810

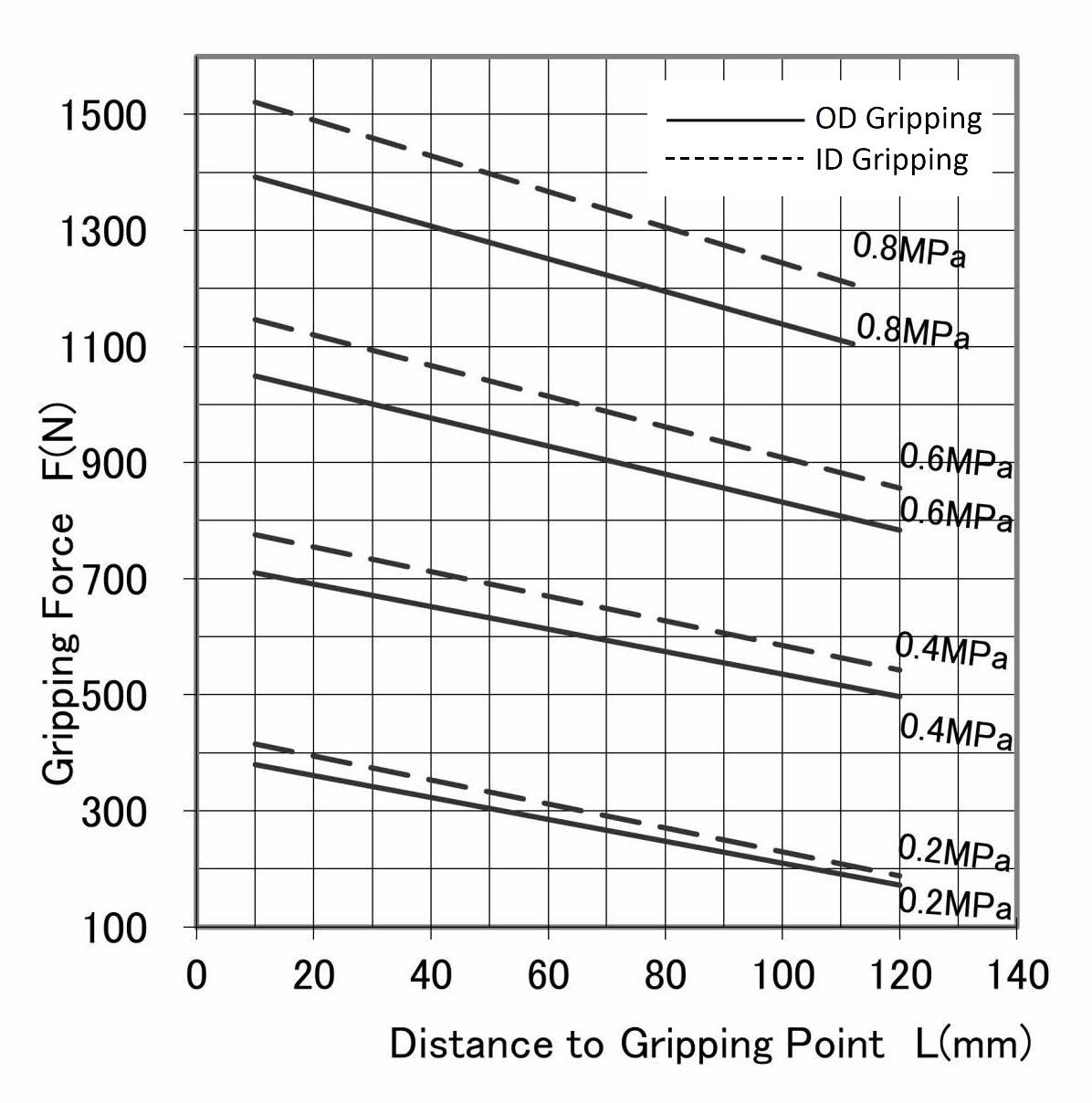

QG30810

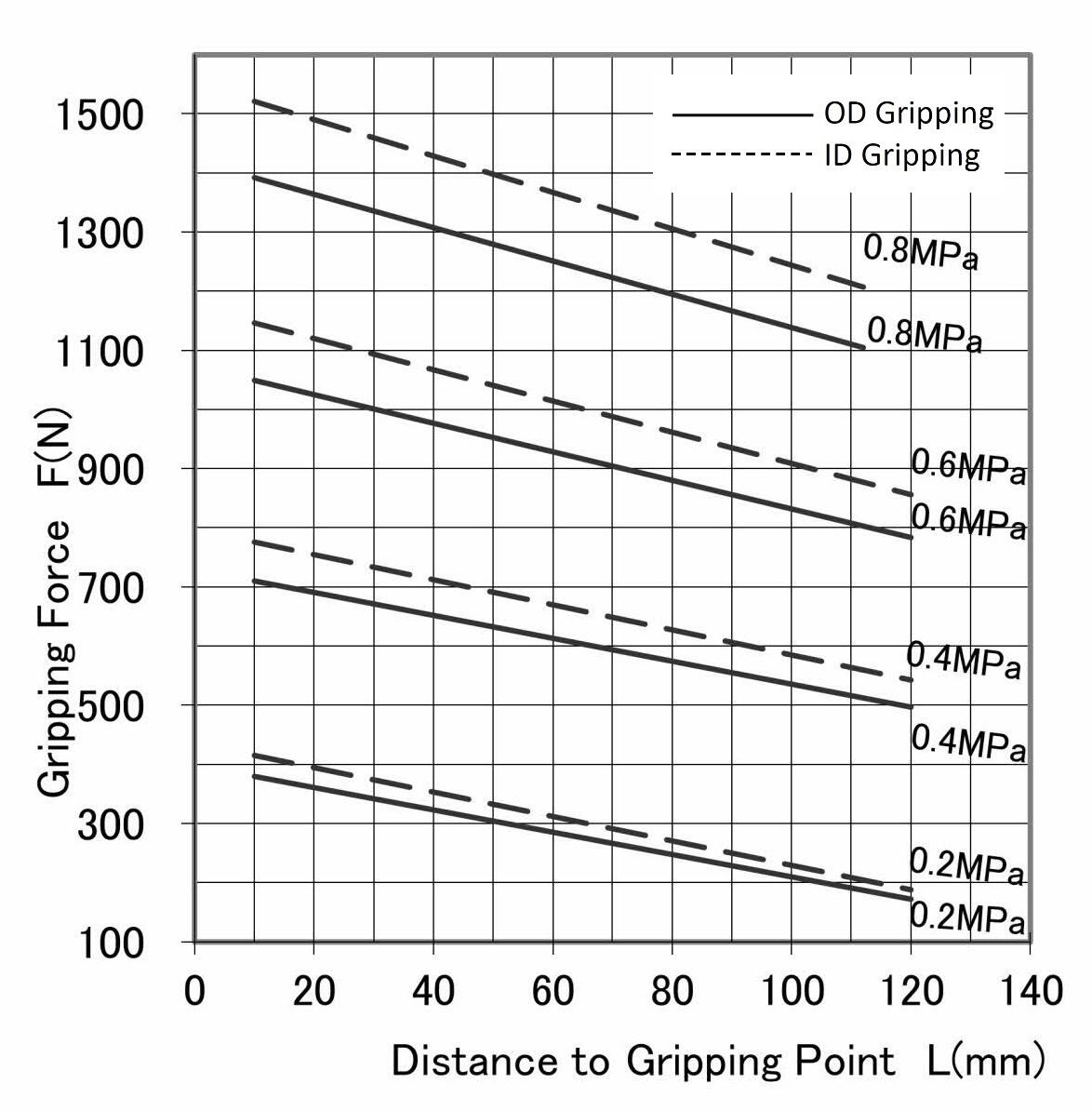

QG30815

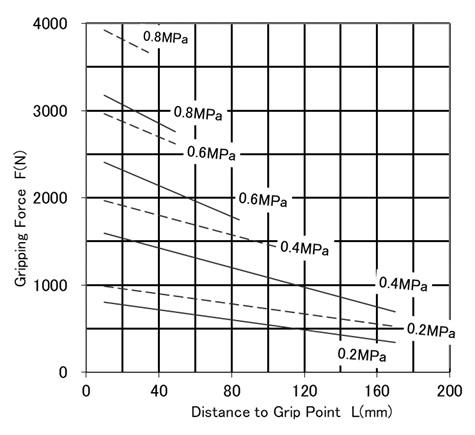

QG21112

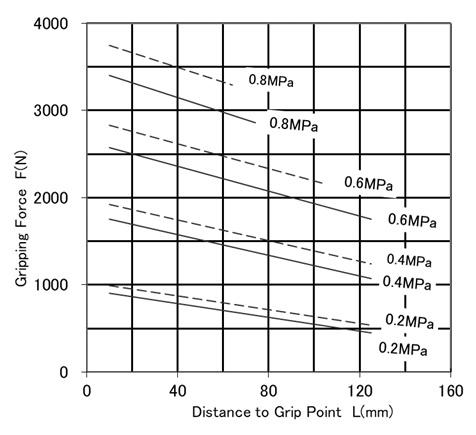

QG31112

The gripping force will be calculated by the gripper model, air pressure, and other gripping conditions.

Calculate gripping force

Drawing download

Model	Drawing download
QGB06	PDF	DXF	Parasolid
QGB06	PDF	DXF	STEP
QG30608	PDF	DXF	Parasolid	Parasolid(QGB06+QG30608)
QG30608	PDF	DXF	STEP	STEP(QGB06+QG30608)
QG20608	PDF	DXF	Parasolid	Parasolid(QGB06+QG20608)
QG20608	PDF	DXF	STEP	STEP(QGB06+QG20608)
QGBL06	PDF	DXF	Parasolid
QGBL06	PDF	DXF	STEP
QGL30610	PDF	DXF	Parasolid	Parasolid(QGBL06+QGL30610)
QGL30610	PDF	DXF	STEP	STEP(QGBL06+QGL30610)
QGB08	PDF	DXF	Parasolid
QGB08	PDF	DXF	STEP
QG30810	PDF	DXF	Parasolid	Parasolid(QGB08+QG30810)
QG30810	PDF	DXF	STEP	STEP(QGB08+QG30810)
QG30815	PDF	DXF	Parasolid	Parasolid(QGB08+QG30815)
QG30815	PDF	DXF	STEP	STEP(QGB08+QG30815)
QG20810	PDF	DXF	Parasolid	Parasolid(QGB08+QG20810)
QG20810	PDF	DXF	STEP	STEP(QGB08+QG20810)
QGB11	PDF	DXF	Parasolid
QGB11	PDF	DXF	STEP
QG31112	PDF	DXF	Parasolid	Parasolid(QGB11+QG31112)
QG31112	PDF	DXF	STEP	STEP(QGB11+QG31112)
QG21112	PDF	DXF	Parasolid	Parasolid(QGB11+QG21112)
QG21112	PDF	DXF	STEP	STEP(QGB11+QG21112)

Note 1) The 3D data for the base units (QGB, QGBL) represents the piston positions at the fully extended end (UC) and the fully retracted end (OC).

Note 2) The 3D data for the jaw plates (QG, QGL) represents the jaw positions at the fully open end (UC), the fully closed end (OC), and the centre of stroke (HCL).
